Product Details:
|
| Name: | RT QPCR Instrument | Color: | Orange And White |
|---|---|---|---|
| Size: | 240×230×260mm | Weight: | 5KG |
| High Light: | Fast RT QPCR Machine 5kg,RT QPCR Machine NMPA,NMPA Quantitative Fluorescence Pcr Molecular Thermal Cycler |
||

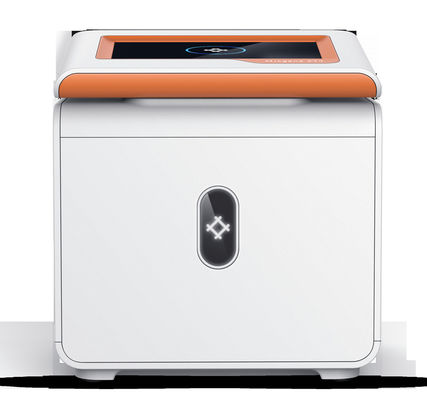

Fast and accurate quantitative fluorescence molecular thermal cycler, real time PCR Analyzer
Remark:
Small and exquisite:
Easy to carry, vehicle-mounted, small in size, light in weight, and easy to carry;
Steady light path:
Fixed optical path, no moving parts, means no optical alignment or calibration after moving;
Strong light source:
Each channel has a separate high-intensity LED excitation source, using separate emission filters and detectors;
Warm up fast:
Use magnetic induction technology to achieve heating and forced airflow cooling, faster heating and cooling time;
Temperature control standard:
Rotating aluminum rotors have unmatched temperature uniformity in both dynamic and static operation;
Operation interface:
Product parameter:
| Temperature Accuracy | ±0.2℃ |
| Temperature uniformity | +0.25℃ |
| Temperature Input Range | At room temperatureto 99℃ |
| Rate of temperature change | heating rate >6℃/s;cooling rate >4℃/s |
| Excitation sources | High power LED/channel |
| Detectors | Photodiode |
| Light life | ≥ 100,000 hours |
| Fluorescence channel | 2/4 channels |
| Samples per instrument | 24 Wells |
| Reaction volume range | 10-100ul,0.2ml,Use a universal PCR tube |
| Hardware parameters | With touch screen,the experimental process can be viewed in real With touch screen,the experimental process can be viewed in real time;The device supports connecting to the cloud service platfom,a time;The device supports connecting to the cloud service platfom,and can realize functions such as automatic data transmission and nd can realize functions such as automatic data transmission and remote consulting |
| Communication module | USB,Wifi ⭐The device can be connected with a code scanning gun and input sample information |
| Run time enviroMicgene 162/164 Real-time fluorescence quantitative PCR analyzer:nment | Temperature:18-30℃ |
| Releative humidity:20-80% | |
| Software options: test version,scientific research version,teaching version | |
| Physical parameters | Small size,easy to carry;External |
| 240×230×260mm(L×W×H) | |
| Weight | 5kg |
