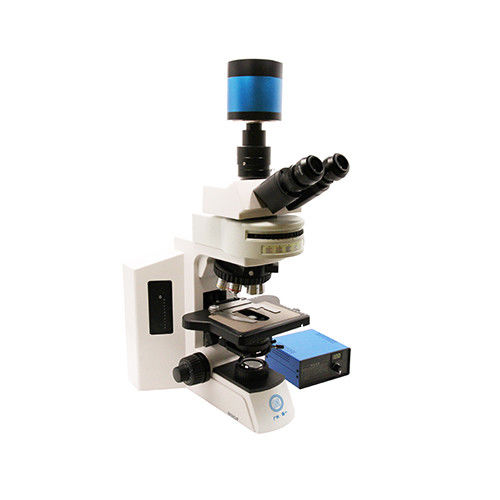

Upright Fluorescent Biological Microscope B60F
  • name
  • name
  • name
  • name

Upright Fluorescent Biological Microscope B60F

Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Daoyi
Model Number
B60F
Eyepiece:
WF 10x/22
Objective Lens:
Plan Achromatic Objective Lens4x/0.1,10x/0.25,20x/0.40,40x/0.65,100x/1.25(oil Lens)
Fluorescentoptical Axis:
4-position Nosepiece, Replaceable Excitation Module, High-power LED Light Source.standard Three Colors Fuorescence
Eyepiece Cylinder:
Three Eye Cylinder Tilted At 30 °
Objective Turntable:
5 Positions
Light Source:
12V/3W LED
Standard Three Color Fluorescence:
UV EX 365/50 EM 450/50, B EX475/40 EM 530/30 G
Focus:
Coarse And Micro Coaxial Focusing
Highlight:

Fluorescent Biological Microscope

,

Upright Biological Microscope

,

B60F Biological Microscope

Product Description

B60F upright fuorescent biological microscope adopts infinity plan achromatic fuorescentobjective lens and wide-field eyepiece, the optical system has clear imaging and wide field of view.The excitation light source adopts high-power and high-brightness monochrome LED module group,and the transmission light source adopts high-power and high-brightness white LED module. Thelighting brightness is adjustable, the lighting device has low power consumption, long service life.and has safe and comfortable operating performance. Products can be widely used in biology,medicine, industry, agriculture and etc.



Eyepiece: wide feld of view WF10X(Ф22mm)binocular tube or trinocular tube optional

Upright Fluorescent Biological Microscope B60F 0



Stage: double-layer mechanical mobile type

Size:210mm X 140mm

Moving range:75mm X 50mm

Upright Fluorescent Biological Microscope B60F 1



Fluorescence cube turret to excite theemission filter

Upright Fluorescent Biological Microscope B60F 2



Knob type fluorescent light source powersupply to adjust the fuorescent light intensitywith digital intensity display.

Upright Fluorescent Biological Microscope B60F 3



UV excitation

Upright Fluorescent Biological Microscope B60F 4
Blue light excitation

Upright Fluorescent Biological Microscope B60F 5
Green light excitation

Upright Fluorescent Biological Microscope B60F 6
