Product Details:
|
| Size Of InstrumentSize Of Instrument: | 349 Mm * 325 Mm * 390 Mm | Weight: | 25KG |
|---|---|---|---|
| Package: | Carton Package | ||
| High Light: | 25KG Automatic Nucleic Acid Extractor,Micgene Automatic Nucleic Acid Extractor,25KG RNA Extraction Instrument |
||

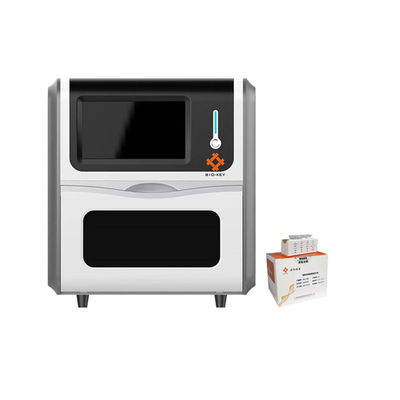

BioPure series nucleic acid extractor is a set of highly automatic equipment integrating nucleic acid extraction and purification, adopts nano magnetic bead extraction method:
1/BioPure 12 can be used for nucleic acid extraction of 12 samples at a time, and can also be used for nucleic acid extraction of single or multiple samples.
2/BioPure 32 can extract nucleic acid from 32 samples at a time to meet the needs of nucleic acid extraction,
3/BioPure 96 can extract nucleic acids from up to 96 samples.
Specification:
| Instrument flux | 1-32 |
| Number of platform plates | 2 |
| Use consumables | 96 deep hole plate |
| Reagent type | Magnetic bead method open platform |
| volume of processing | 50-1000uL |
| heating temperature | At room temperature to 140 ºC |
| Size of instrument | 349 mm * 325 mm * 390 mm |
| Volatile mix | 1-8 is adjustable |
| Maximum stirring speed | Bidirectional 10HZ(10 times up and down in 1 second) |
| display | 13 inch color display |
| Bead recovery | 96% |
| Purification between the hole difference | CV< 5% |
| Sample processing time | 20-40min(depending on reagent and volume selected) |
| Program management | With new, edit and delete program functions |
| Data storage | Can store & gt; 500 groups of program |
| Extension mode | 1 USB standard port, Ethernet |
| power supply | 200-240 v100-120:50/60 hz |
| Exhaust way | fan |
| weight of the | 25KG |
| Low noise processing < 50db | 50db |
Advantages and disadvantages of different nucleic acid extraction methods:
| Extraction method | Centrifugation (one step method) | Magnetic bead method (manual) | Magnetic bead method (machine) | The chromatography column method |
| Whether extraction equipment is required | No need | No need | Need | No need |
| Extracting effect | One step method does not purify | Relatively pure | Relatively pure | Relatively pure |
| Extracting time | About 10 minutes | About 30 minutes | About 30 minutes | About 30 minutes |
| peration | Simple | Relatively complicated | Simple | Relatively complicated |
| Operation | No | Yes | No | Yes |
| Extraction failure probability | Big | Small (depending on operation) | Small (machine stable) | Small (depending on operation) |
Remark:None of the extraction methods can be 100% pure, nor can they be 100% successful, nor can they avoid 100% amplification inhibition.
