CE Multiple Four Insect Borne Infectious Disease Pathogen Malaria Taqman PCR Kit

Certification
China Guangzhou BioKey Healthy Technology Co.Ltd certification
China Guangzhou BioKey Healthy Technology Co.Ltd certification
I'm Online Chat Now

CE Multiple Four Insect Borne Infectious Disease Pathogen Malaria Taqman PCR Kit

CE Multiple Four Insect Borne Infectious Disease Pathogen Malaria Taqman PCR Kit
CE Multiple Four Insect Borne Infectious Disease Pathogen Malaria Taqman PCR Kit CE Multiple Four Insect Borne Infectious Disease Pathogen Malaria Taqman PCR Kit

Large Image :  CE Multiple Four Insect Borne Infectious Disease Pathogen Malaria Taqman PCR Kit

Product Details:
Place of Origin: Guangzhou China
Brand Name: Biokey
Certification: ISO 13485,CE
Model Number: BIK-QL-H009 / BIK-QLH009S
Payment & Shipping Terms:
Minimum Order Quantity: We can produce liquid and lyophilized kits
Price: USD
Packaging Details: Carton package
Delivery Time: Depending on order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000 per day

CE Multiple Four Insect Borne Infectious Disease Pathogen Malaria Taqman PCR Kit

Description
Package: 96 T/kit (carton) / 48 T/kit (single Tube) Specimen: Whole Blood , Serum.
Channel: FAM, VIC/HEX, ROX And CY5. Applicable: Micgene 244/244 IVD(BIO-KEY)
LoD: 500 Copies/mL CV: ≤5%
High Light:

Malaria Pcr Kit CE

,

Multiple Malaria Pcr Kit

,

micgene Multiple Taqman Pcr Kit

Four Insect-borne Infectious Diseases Pathogens(Malaria) Multiple Fluorescence PCR probe kit



Intended use:


This product is used for in vitro qualitative detection of Malaria/Borrelia burgdorferi/Zika/Dengue virus nucleic acid in human serum samples. The test results are for clinical reference only, it cannot be used alone as the basis for the diagnosis or exclusion of cases.



Test Principle:


The kit adopt TaqMan fluorescent probe method. For the highly conserved and specific region of Malaria/Borrelia burgdorferi /Zika/Dengue, the primer probes, together with RT-PCR reaction solution for fluorescent detection are designed and labeled with different fluorescent groups. On the fluorescence quantitative PCR instrument, the real-time fluorescence quantitative PCR detection technology is used to realize the rapid detection of Malaria/Borrelia burgdorferi/Zika /Dengue through the change of fluorescent signal. The detection system contains positive internal control, used to monitor whether the nucleic acid extraction process is normal.


Product components:



1CE Multiple Four Insect Borne Infectious Disease Pathogen Malaria Taqman PCR Kit 0 BIK-QL-H009:

No. Components Amount
1 PCR Enzyme Mix (Lyophilized) 96 tests/bottle
2 Primer-Probe Mix 1( Malaria ) 50 μL/vial
3

Primer-Probe Mix 2(Borrelia

burgdorferi / Zika / Dengue)

50 μL/vial
4 Enzyme Mix Buffer (5×) 400 μL/vial
5 Positive Control 100 μL/tube
6 Negative Control 100 μL/tube
7 RNase-free water 1mL/tube
8 Paraffin oil 1.5mL/tube*2



2 BIK-QL-H009S:



No. Components Amount
1 1 (Malaria Mix (Lyophilized)) 24 tests/kit
2 2 (Borrelia burgdorferi/ Zika / Dengue Mix (Lyophilized)) 24 tests/kit
3 Positive Control 100 μL/tube
4 Negative Control 100 μL/tube
5 RNase-free water 1mL/tube
6 Paraffin oil 1.5mL/tube



Note: Do not mix the components from different batches for detection. The Positive Control of Malaria/Borrelia burgdorferi/Zika/Dengue and internal control were constructed artificially, and they were not infectious.



Product pictures:

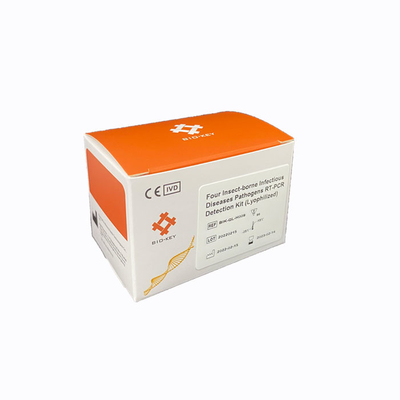

CE Multiple Four Insect Borne Infectious Disease Pathogen Malaria Taqman PCR Kit 1








Compatible instruments:



The diagnostic kit is applicable to PCR instrument with multi-color fluorescence channel FAM , VIC/HEX, ROX and CY5 including Quant Studio5 (ABI), Micgene 244/244 IVD(BIO-KEY).



Reaction Mix Preparation:



Ⅰ. Malaria reaction mix:



1×volume required
Resuspended master mix 14 μL
Primer-Probe Mix 1 1 μL
Total volume 15 μL





PCR amplification condition:



Step Cycle Temperature Time
1 1 50℃ 10 min
2 1 94℃ 3 min



3



40

94℃ 10 s
60℃

30 s(Collection of fluorescence)



Interpretation of test results:



(1)Malaria reaction:





FAM

(Malaria)

CY5

(IC)

Interpretation test results
1 - - Result invalid ,test again
2 + +/- Malaria(+)
3 - + Negative(-)



NOTE: ‘+ ’ is positive, ‘- ’ is negative.


 Operation details please check from IFU
